Adding Feedback in 3D

Adding Feedback in 3D

When reviewing a 3D model in CoLab, you can easily bring comments, feedback, and design issues to the attention of your team, stakeholders, customers and partners.

You can add feedback directly on a 3D model to bring attention to an issue or comment. You can then assign the feedback to a reviewer, and add more information including due date, description, and more. After saving feedback, it will automatically populate into your feedback list on the right hand side of CoLab.

Step 1: Navigate to the CoLab Drive within a workspace and open the desired 3D model

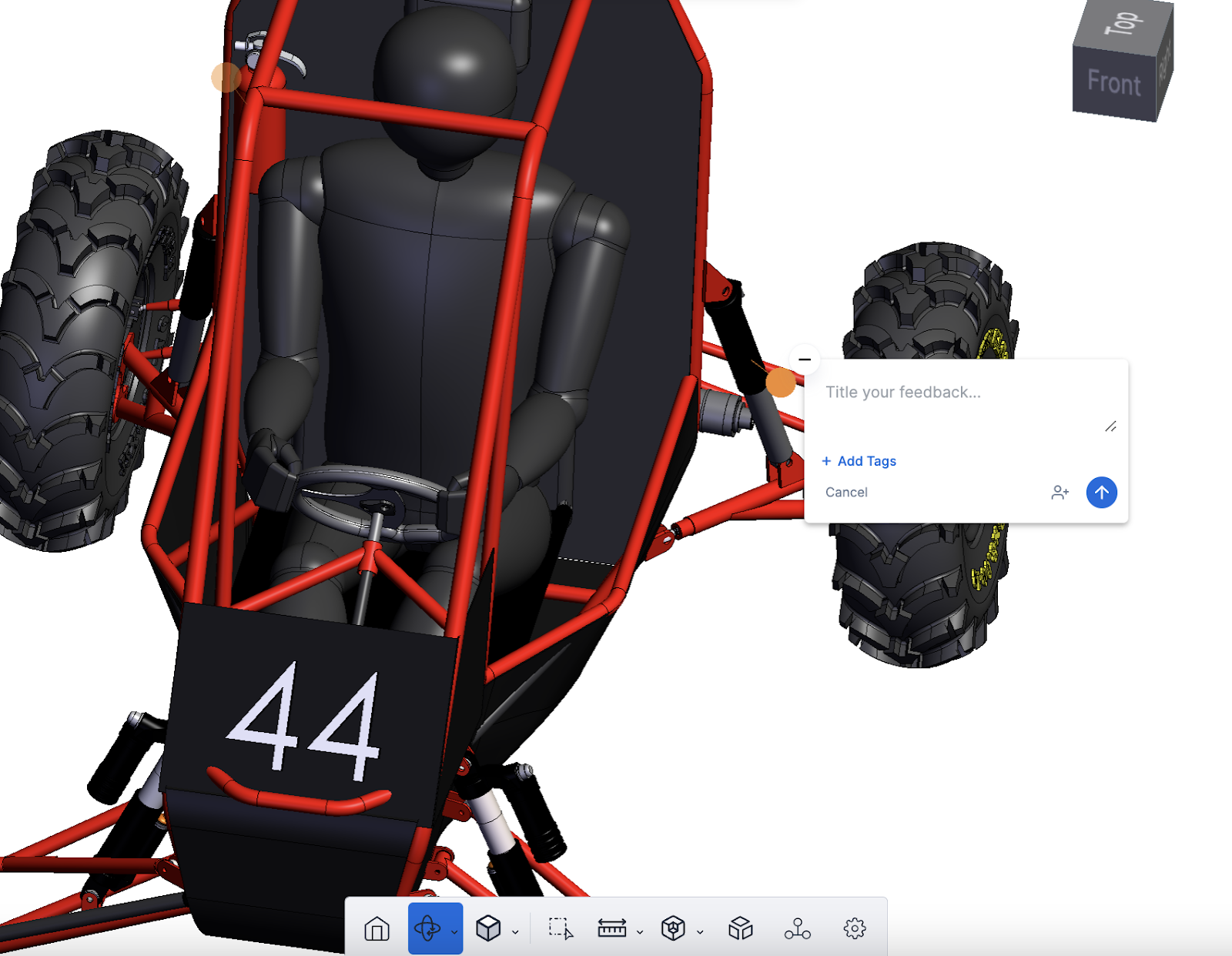

Step 2: Select the ‘Pin Feedback’ button

Drop the pin on the highlighted component or surface

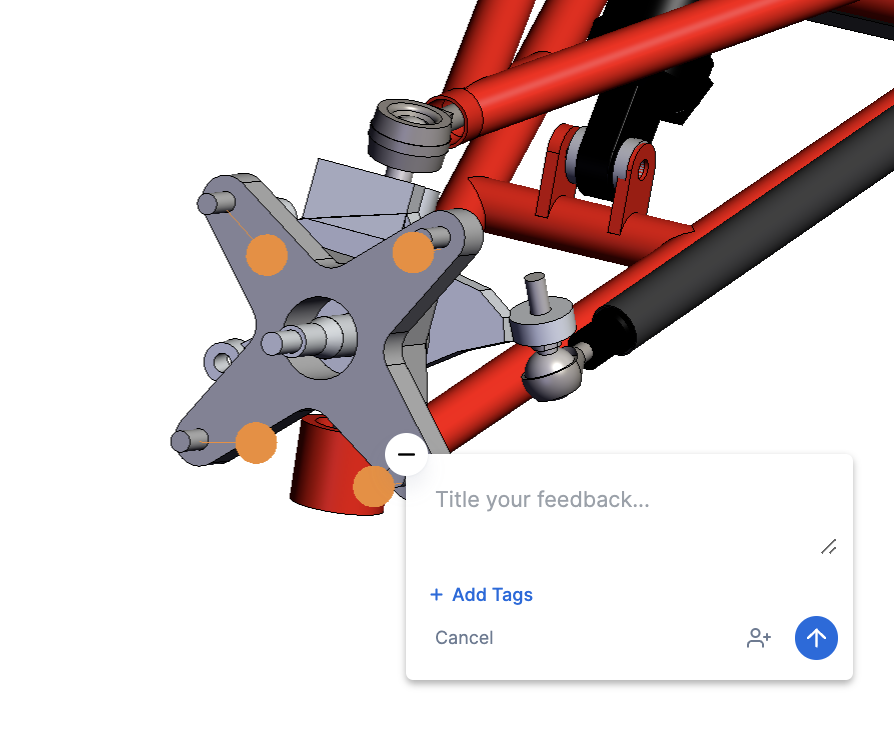

Note: Multiple pins can be linked to the same feedback item by continuing to drop pins prior to saving the feedback item. As seen below, the four orange pins will be saved under the one feedback. When you open the feedback item in the feedback list later, clicking the feedback item will snap back to the saved view of the model.

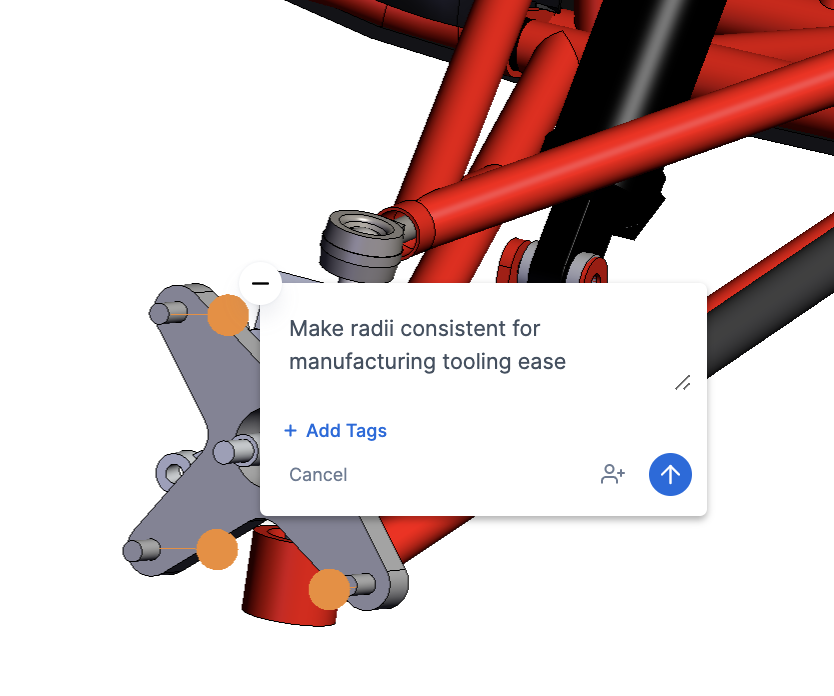

Step 3: Save the 3D Pin(s) as Feedback

  • Select the ‘Issue’ dropdown on the feedback card to specify whether the feedback type is an ‘Issue’, ‘Task’, ‘Comment’ or ‘Markup’. For best practices on which feedback type to select, see our knowledge base article on Feedback Types.
  • Enter a summary for the feedback to describe the issue or comment
  • Add tags to classify the feedback
  • To assign the feedback to another CoLab user, select an Assignee from the dropdown list
  • Click ‘Save’ to create the feedback

Once saved, feedback items will automatically populate into the feedback list (found by clicking the ‘Feedback’ button on the right side of your screen.

Step 4 (optional): Add additional details to the Feedback

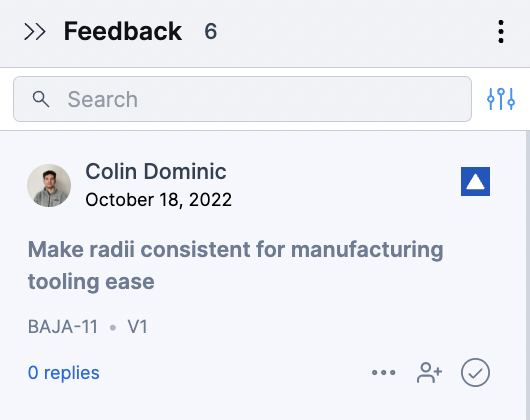

Click the ‘Feedback’ button on the right to open the Feedback list. The Feedback list displays all of the feedback that has been created by any user in the workspace on the particular file that you have open in the Viewer.

Click the ‘Show More’ button to add additional details to the feedback item. For information on best practices for adding feedback details, see Feedback Details.

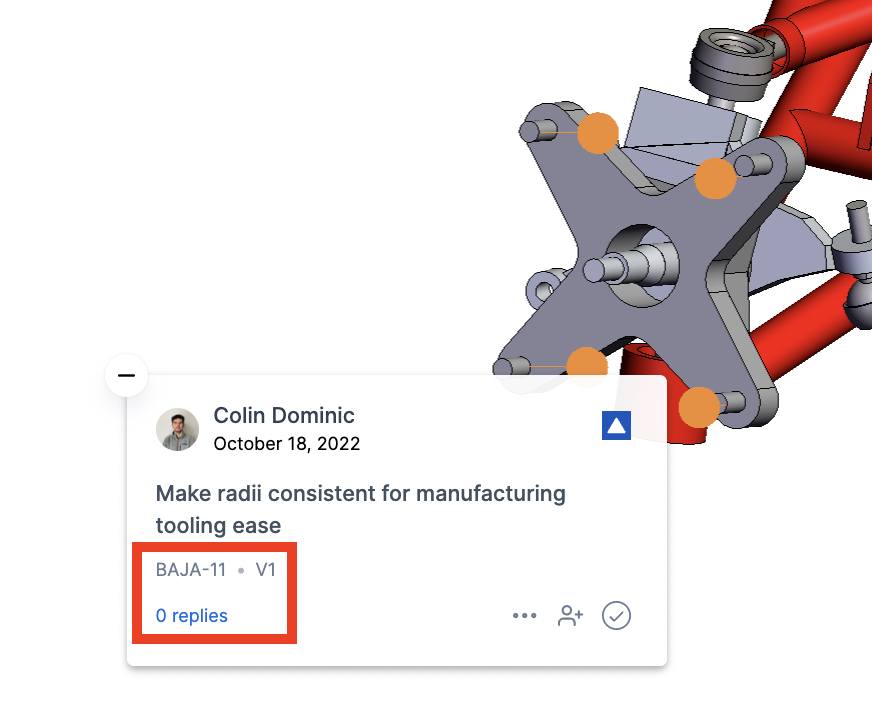

The unique Feedback key and the revision of the file are now displayed on the Feedback card, Feedback details, and in Track.

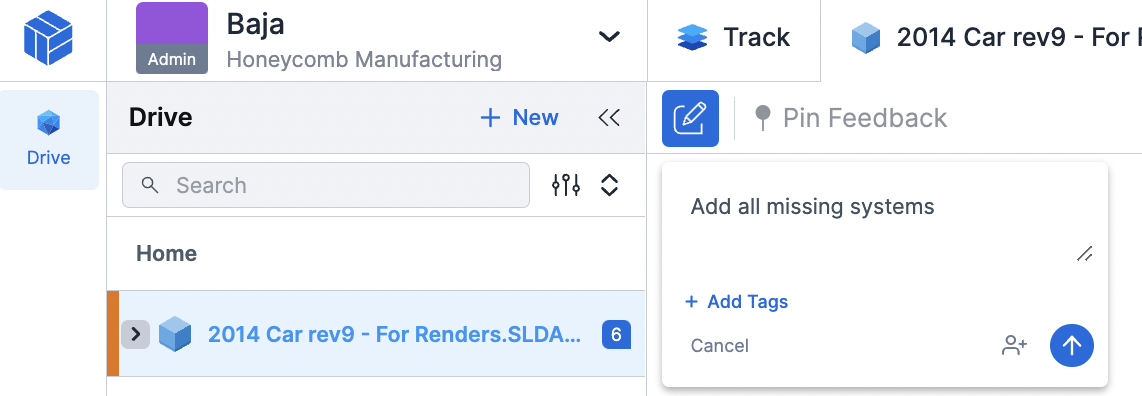

You can also leave Feedback that applies to the file as a whole, and not to a specific part of the file. To leave a general comment, click the ‘General Feedback’ icon.

Users can see the number of unresolved Feedback on a file from the Drive panel. If there are multiple revisions, a count of unresolved Feedback on each revision is displayed giving users full visibility into the status of Feedback in a file without having to open the file.
